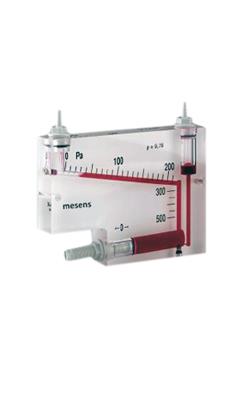

Inclined Type Manometer MPG-IM

Model MPG-IM inclined tube manometer is intended for use in applications where measurement of low pressure and differential pressure is needed or in monitoring applications where clear and reliable reading must be taken from a distance. Its design makes the instrument ideal for applications involving occasional differential pressures exceeding the measuring range. Typical applications are air conditioning strainers, blowers, dust filters, pressurized enclosures and draught measurement in furnaces.

Technicial Specifications
Ambient Temperature
–40 ... +50°C
Accuracy
±<5%
Metering Liquid
Red, hydrocarbon mixture, ρ=0.78
Body
Acrylic
Max. Static Pressure
6 bar
Max. Overload
5 – 30 x measuring range
Connectors
Polycarbonate (PC)
Specifications
1-
Customized Design
2-
Special Ranges
3-
Colored Liquids
4-
Simple and clear reading
5-
Zero Balancing
